For professionals
Control systems and installations.
Controlling Emergency and Lighting devices becomes quick and easy.
Our products can be seamlessly integrated with different control systems to provide outstanding advantages such as remote management, maximum flexibility of use, different diagnostic systems, performance of periodic tests, constant monitoring, and compatibility with industrial and commercial installations. In compliance with EN 50171, EN 50172, EN 62040-1-1, and EN 62040-2, our emergency and lighting devices are available in different control modes:
TR - Traditional
Traditional version luminaires with battery verification LED and possibility of adjusting the range on the circuit (1h-3h).
Traditional version luminaires with battery verification LED and possibility of adjusting the range on the circuit (1h-3h).
AT - Self test
Devices with local diagnosis of all functions (battery, source, circuit) and adjustable autonomy by acting on the circuit (1h-3h) or from App B.connect (1h-1.5h-2h-3h-8h)
CT - Self-powered central testing
Self-powered luminaires already suitable for immediate data connection to a CentralTest central unit by means of native Cablecom technology (the control BUS takes advantage of the existing power grid). Add-on modules for expansion to LG, LGFM and DALI
CTS - Central system centralized power supply
Centralized batteries and diagnostics for refurbished equipment, available in 230Vdc as well as 24Vac versions, ensuring maximum system safety.
Centralized batteries and diagnostics for refurbished equipment, available in 230Vdc as well as 24Vac versions, ensuring maximum system safety.
HT - From 230V mains or rescuer/DALI system
Mains-powered luminaires, rescuers, LG230 systems, DALI control (HT-DALI)
CT Central Test: durability and reliability as in the best centralized systems.
Different centralized diagnosis systems (CBL, LG, LGFM, DALI) enable periodic tests with automatic compilation of the logbook of periodic checks and inspections (LogBook)*. Batteries built into the emergency luminaires ensure a high service life and an extended operating temperature range (-10÷45°) as well as a ten-year warranty.
CT-CBL and LGFM, the simplicity of centralized control without BUS implementation
CT-CBL communicates with the CBL control center using power cables. The LGFM system uses a military-derived radio transmission system that connects central and devices easily and immediately.**
*Provided for in the UNI CEI 11222 standard.
** Devices must be equipped with the corresponding optional module.

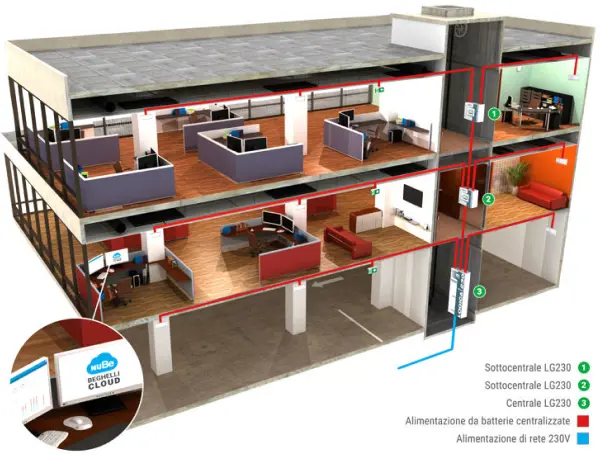

CTS Central System: rapid maintenance by centralizing all batteries near the control center.
All the functions of scheduling periodic tests, printing the LogBook, and controlling and supervising the luminaires are grouped in the central unit.* Luminaires talk to the central unit via a digital transmission that can be decoded only by the luminaire to which it is addressed, limiting connections and installation cables.
The innovative DRM system locally powers the devices, ensuring their operation even if the centralized power lines are interrupted.
Up to 32 luminaires powered by 230V (LG230) or 24V (LG24) batteries can be connected to the CTS System. LOGICA 24 series DYNAMIC luminaires and control panels integrate modifiable signage to signal the correct emergency route in any situation.
* Plant in accordance with UNI 11222.
Emergency becomes smart with Beghelli Apps and Cloud.
Lorem ipsum dolor sit amet

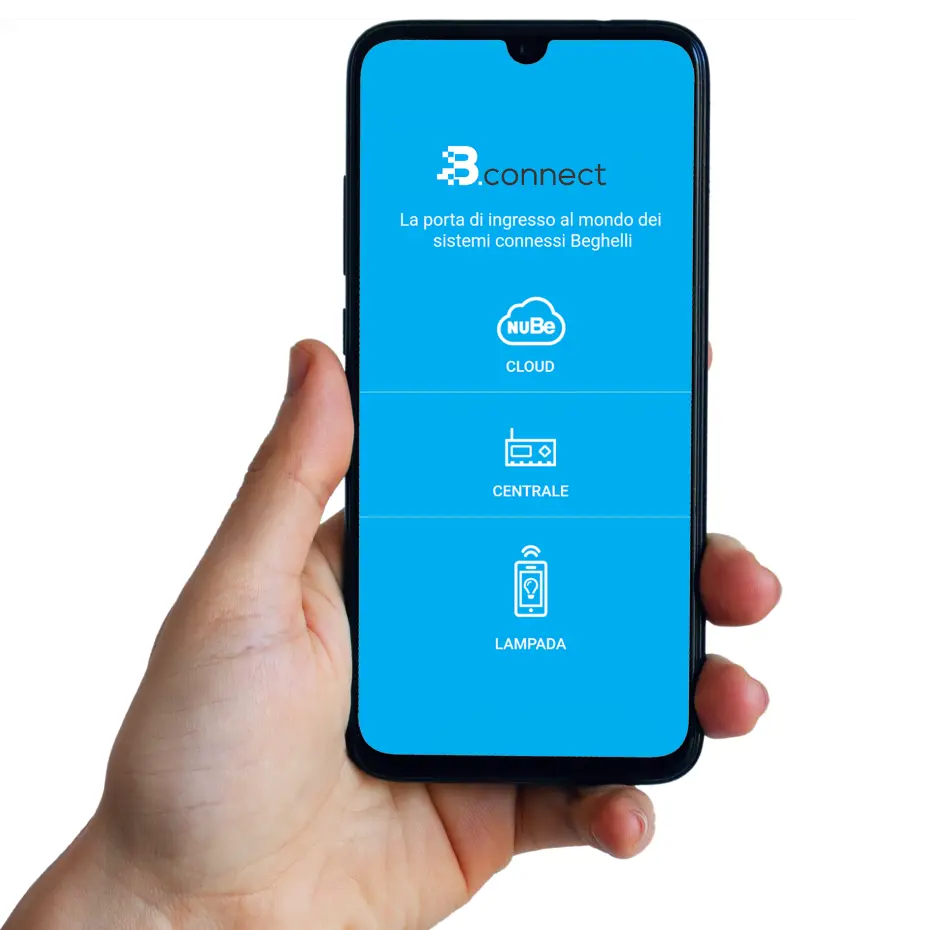

B.Connect
The App that allows you to access the appliance, control panel and NuBe platform through a secure connection facilitated by reading the QR code. It communicates with the device allowing you to change navigation parameters, initiate diagnostic tests and advanced configurations.
- Direct access to Beghelli power plants via WiFi
- Connect and gain control of Cablecom Connect, Logica Connect and Logica FM Connect control panels
- Download the latest reports and monitor the progress of your plants
 |
 |
Lorem ipsum dolor sit amet
NuBe
Our Cloud gives you access to all your facilities, allows you to manage and monitor lighting and emergency lighting, both self-powered and centralized battery-powered fixtures. Devices are connected via end-to-end encryption to ensure the highest standards of security.
- Predictive maintenance, anticipates plant maintenance interventions and prevents malfunctions
- You can turn on, turn off and dim groups of luminaires with programmed lighting scenarios
In addition, the power plants collect data from the plant even in the absence of the network, to publish it as soon as the Internet connection is re-established.
The perfect combination for intelligent lighting management through technology.
Beghelli's unique features for lighting and emergency systems.
Lighting
Lorem ipsum dolor sit amet
SD-RADIO - It also integrates radio
It activates the connection to the SD Logica LGFM Beghelli Control Panels and has the Autodimmer function that is activated with the installation of the luminaire. The line integrates intelligent dimmer photosensor and dimming intensity setting with presence sensors.
Lorem ipsum dolor sit amet
SD-X - Expandable with autodimmerIt makes the devices autonomous and connected to LGFM SD Control Panels by integrating the optional Radio Module. The version integrates three different connectors with Autodimmer function, PLUG&LIGHT emergency and Dali Module or the 0÷10V Module.
Lorem ipsum dolor sit amet
Natural light - Intelligent autodimmer photosensorIntegratable into luminaires equipped with SmartDriver, it makes the devices autonomous in modulating the luminous flux that adjusts according to the light in the environment. Compared with LED fixtures with fixed luminous intensity, energy savings are more than 30 percent.
Lorem ipsum dolor sit amet
Modulo Plug & Light - Quick-connect emergency inverterUnique and quick-to-install connection system that can be placed on all SD-X luminaires without modification to the system. The luminaire on which the module is installed maintains its regulatory compliance.
Lorem ipsum dolor sit amet
Air sanitation integrated into lighting
Hybrid fixtures for ordinary lighting with integrated air sanitizer. The sanitizing device is based on a closed-chamber UV-C Flow Cell without Ozone emission. The system has adjustable speed and operation timing, and also, thanks to the unique uvOxy® technology, eliminates any risk during its operation and allows continuous sanitization of rooms in the presence of people. Tests conducted are available online and certify a sanitization effectiveness of over 99% on Coronaviruses and Bacteria far more aggressive than COVID-19.
Emergency
Lorem ipsum dolor sit amet
The paintable and environmentally friendly design emergency
An innovative concept that allows installed fixtures to “disappear” thanks to a surface treatment that allows them to be painted, even with normal masonry paints. In addition, the ArchitecturalEco line, maintains a reduced environmental impact through the use of completely renewable materials, recycled raw materials or biodegradable and compostable materials such as PHA, a polymer of organic origin
Lorem ipsum dolor sit amet
Booster battery
Optional additional battery that increases the luminous flux emitted by the luminaire by at least 50%.
Lorem ipsum dolor sit amet
DRM Autoripara
It can be integrated into centralized power supply emergency luminaires (LG230), ensuring the operation of the device even when the centralized power lines are interrupted.
Lorem ipsum dolor sit amet
Air sanitation integrated with emergency lighting
Hybrid emergency luminaires with integrated air sanitizer. Thanks to the unique uvOxy® technology, with a closed-chamber UV-C ray flow cell, and no Ozone emission, the system eliminates any risk during its operation and allows continuous sanitization of rooms in the presence of people.
