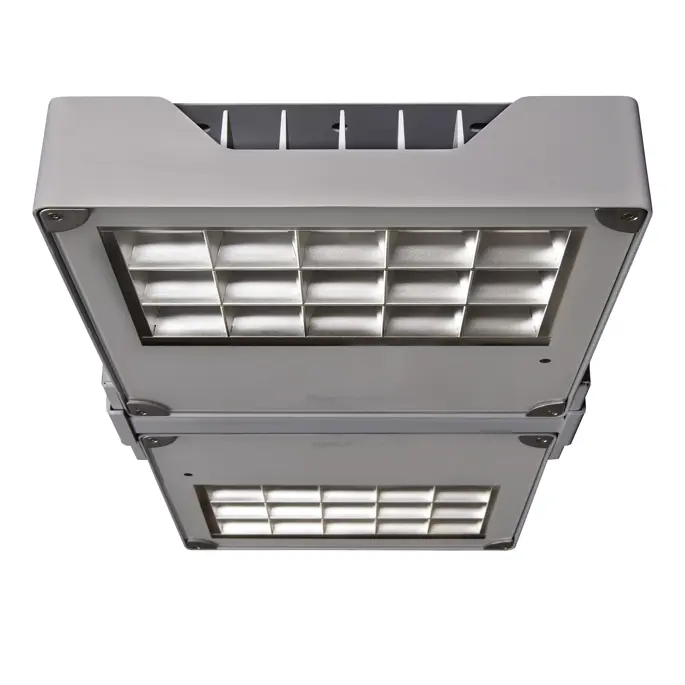

H-Pro Modula is the new high performance reflector for industrial or large area lighting up to 49,500 lm.
H-Pro reflectors integrate the Modula system for fast and easy installation and maintenance.
The Modula junction BOX on the back of the projector, made of die-cast aluminium, contains the power supply terminal box, all cables and optional modules. It is designed to provide direct access to the technical compartment, allowing lighting functions to be managed and changed without having to open the luminaire.
Lorem ipsum dolor sit amet
Do you know the Modula system?
Applications: Industrial.
Installations: Suspended, surface mounted
Body: Die-cast aluminium painted RAL 7040.
Optic: Anti-iridescent polished aluminium.
Shield: Tempered glass.
Wide range of accessories
Modula products are equipped with a wide range of transmission and communication accessories for the SD Bluetooth and emergency lighting versions.
The H-Pro reflector in the SD BLE Modula version integrates a Bluetooth transmitter and is predisposed for the insertion of Autodimmer and Radio Module, to manage luminaire performance and lighting scenes via centralised Radio control or locally with Bluetooth transmission through the B.connect Beghelli App
The line is equipped with an accessory to integrateemergency lighting into the luminaire without opening the lamp. The box cover can be replaced with modules that contain the electronics and battery for various types of emergency, from the TR versions to the CTS centralised battery versions (LG24, LG230, LGEPS).
The AT and CT versions are native pre-wired with integrated inverters.
Lorem ipsum dolor sit amet
Junction box with terminal compartment
On the back of the reflector is a watertight aluminium die-cast box to hold the power and control terminal block.
Lorem ipsum dolor sit amet
TR Emergency Module
Accessory for integrating emergency lighting into the luminaire.
The die-cast aluminium box contains the electronics and battery for the TR version.
The die-cast aluminium box contains the electronics and battery for the TR version.
Lorem ipsum dolor sit amet
Install it as you like

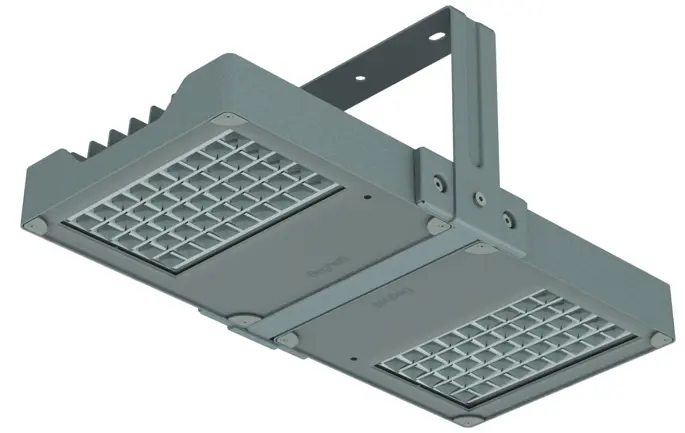

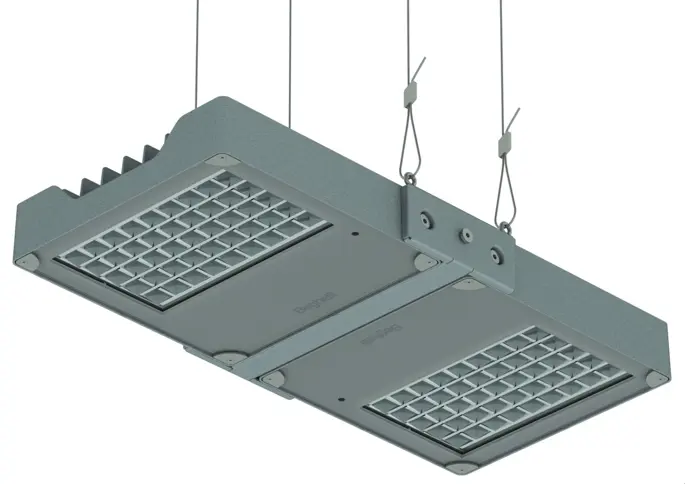

The H-Pro reflectors can be installed either suspended or surface mounted.
Lorem ipsum dolor sit amet

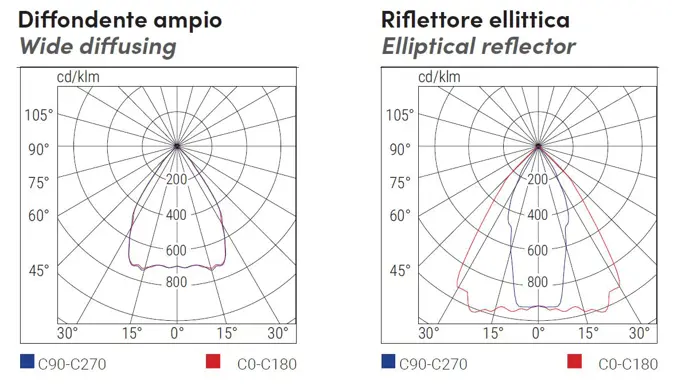

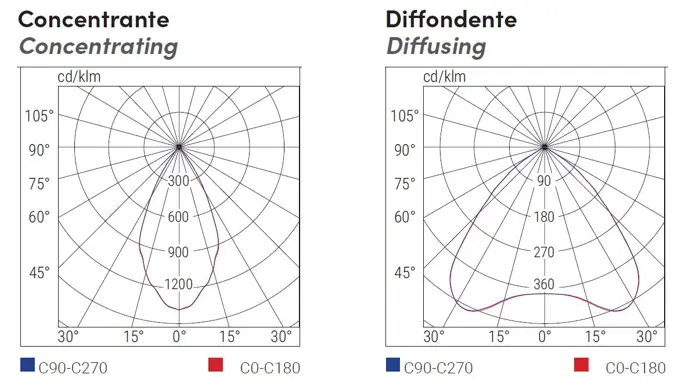

Calibrated light for all types of industrial applications:
- Concentrating Reflector: suitable for high altitudes, reduced beam.
- Diffuse Reflector: designed to contain the UGR, semi-concentrating 70 degree beam.
- Wide Diffuse Reflector: multiple applications, wide beam.
- Elliptical Reflector: suitable for aisles, elongated beam in one direction.
