Pluraluce
Safety luminaire

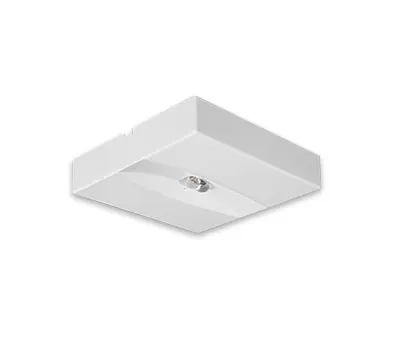

Housing in flat design made of sheet steel and cover made of polycarbonate. High-power LED with light guidance through special lenses for asymmetrical shining light distribution (illumination of escape routes with 1 lx), symmetrical shining light distribution (illumination of areas with 0.5 lx) and 1-sided asymmetrical shining light distribution (illumination of safety devices with 5 lx). Square covers for recessed ceiling mounting separately orderable as accessories.
Versions for surface wall and ceiling mounting, recessed wall (only S24 with device socket) and ceiling mounting and with additional accessories for bracket and chain/wire (only surface ceiling mounting), version S24 with device socket also for recessed mounting on fire protection walls / fire protection ceilings, covers deliverable in other colors on request
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Sheet steel, white (RAL 9010)
|
| Cover: |
Polycarbonate, white (RAL 9010)
|
| Lens: | PMMA, transparent |
| Type of protection: |
IP41 (surface ceiling mounting)
IP42 (recessed ceiling mounting, cover)
IP20 (recessed ceiling mounting, backside & equipment housing)
|
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 4.000 K |
| Color rendering index: | 70 |
| Optic interface: | LIFE, LIFE ECO |
| Commissioning: | For Autotest, operating duration, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | I |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | I |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
| Battery supply (alt.): | 90 V – 276 V |
