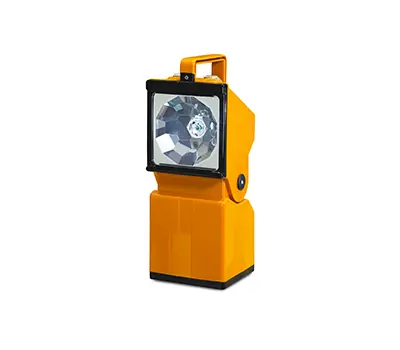

Scout LED
Mobile safety luminaire

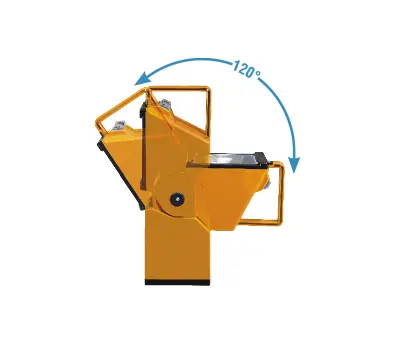

Safety luminaire as mobile spotlight luminaire. Housing made of polycarbonate with adjustable luminaire head (120°). Luminaire head with a main and a para lamp, switchable. Charging and switchover device integrated in housing.
Version for portable use
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Polycarbonate, orange (RAL 2009)
|
| Frame: |
Polycarbonate, grey (RAL 7026)
|
| Connection cable: | H03VVH2-F 2x0.75 mm² (1.3 m), black |
| Plug: | Euro plug, type C |
| Service life L80B20: | 50.000 h (main lamp & para lamp) |
| Color stability: | 3 SDCM (main lamp & para lamp) |
| Color temperature: | 5.700 K (main lamp & para lamp) |
| Color rendering index: | 70 (main lamp & para lamp) |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Switching: |
Non-maintained
|
| Mains supply: | 230 V / 50/60 Hz |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | II |
Specifications
