Pratica Modula

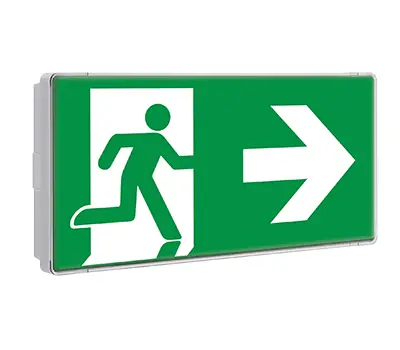

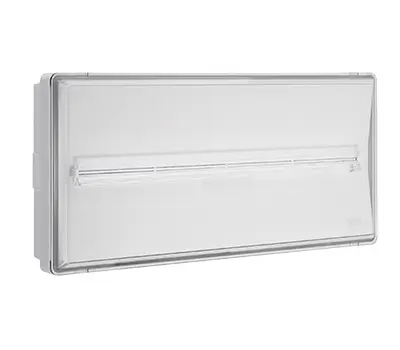

Variable escape sign and safety luminaire
Escape sign and safety luminaire with high type of protection and high impact resistance. Housing with angular contours and clear polycarbonate cover. Light guidance through white polycarbonate reflector.
Installation through novel mounting adapter with integrated water level, which can also be used as junction box for all incoming and outgoing cables. The mounting adapter is only used for the connection to an integrated plug fixture as well as for accommodation of optional accessories. The actual luminaire can consequently be configured and (in battery operation) programmed comfortable on a work surface and only needs finally to be latched onto the mounting adapter with the integrated plug fixture.
Versions for surface wall and ceiling mounting and with additional
accessories for recessed wall and ceiling mounting, bracket and chain/wire
accessories for recessed wall and ceiling mounting, bracket and chain/wire
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Polycarbonate, white (RAL 9003)
|
| Cover: |
Polycarbonate, transparent
|
| Reflector: | Polycarbonate, white (RAL 9003) |
| Type of protection: |
see table regarding type of protection (IP) on catalogue page
|
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 4.000 K |
| Color rendering index: | 80 |
| Bluetooth interface: | LIFE |
| Commissioning: | For Autotest, operating duration 8h, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to + 40 °C
|
| Protection class: | II |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: |
III with connection only to low voltage,
II with additional connection to voltages above low voltage
|
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | II |
