F30 F50 F70 LED
Safety luminaire

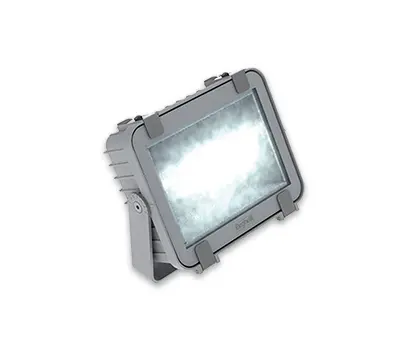

Combined general and safety luminaire with high type of protection and high impact resistance. Spotlight luminaire in housing made of diecast aluminium with pane made of tempered glass, microprismatic and high high-specular reflector made of aluminium. Pane coupled with the housing through hinge and closures made of stainless steel. Swivelable holder (+/- 180°). Light distribution symmetrical wide-beam or asymmetrical narrow-beam, alterable.
Versions for surface wall, ceiling and floor mounting
Also deliverable as luminaire for general lighting
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Diecast aluminium, grey (RAL 7040)
|
| Pane: |
Tempered glass, microprismatic
|
| Reflector: | Aluminium, high-specular |
| Service life L80B50: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 4.000 K |
| Color rendering index: | 80 |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
-20 °C to + 45 °C (luminaire)
0 °C to +40 °C (equipment housing)
|
| Protection class: | I |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: |
III with connection only to low voltage,
I with additional connection to voltages above low voltage
|
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | I |
