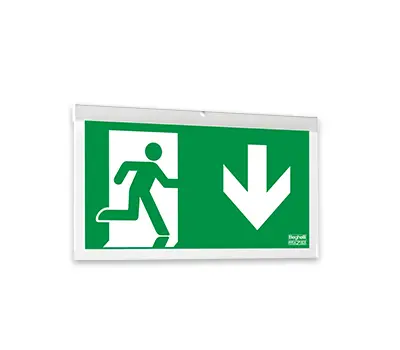

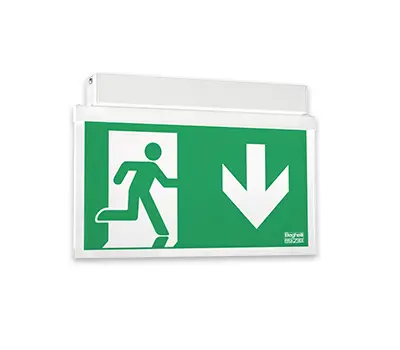

Plexi LED
Escape sign luminaire
Housing in flat design made of sheet steel and frameless display with integrated light guide panel made of clear plastic. Homogeneous light distribution for realization of an optimal illumination of the escape sign. 1- or 2-sided escape route indication through exchangeable escape sign foils.
Versions for surface wall and ceiling mounting, recessed ceiling mounting as wire pendulum (in hollow ceilings) and wire pendulum (surface ceiling mounting) and with additional accessories for recessed ceiling mounting (in massive ceilings) and bracket
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Sheet steel, white (RAL 9010)
|
| Display pane: |
Light guide panel (display pane) / Polycarbonate (foil, printed)
|
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 5.000 K |
| Color rendering index: | 80 |
| Optic interface: | LIFE |
| Commissioning: | For Autotest, operating duration, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | II for recessed ceiling mounting with round cutout, I for all other mounting types |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | II for recessed ceiling mounting with round cutout, I for all other mounting types |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
| Battery supply (alt.): | 90 V – 276 V |
