Kubus 65
Variable escape sign and safety luminaire
Variable escape sign and safety luminaire in high type of protection. Housing made of sheet steel or stainless sheet steel with clear cover. Light guidance through high-specular aluminium reflector 1- or 2-sided escape route indication through self-adhesive foils. All (1-sided) luminaires for surface wall mounting / surface ceiling mounting are suitable for the use in sport sites as well as in the food industry according to IFS-Food (certificates of accredited body available).

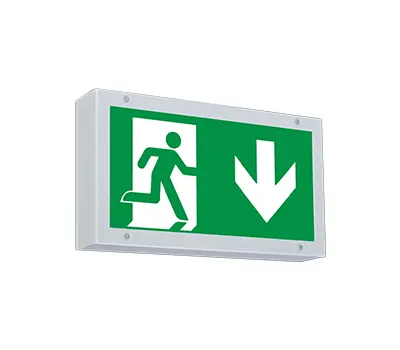

Escape sign luminaire:
Versions for surface wall mounting and with additional accessories for pendulum and bracket

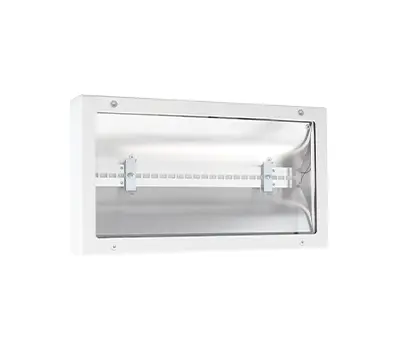

Safety luminaire:
Versions for surface wall and ceiling mounting
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Sheet steel, white (RAL 9003)
Stainless sheet steel, V2A
|
| Cover: |
PMMA, transparent
|
| Foil: | PVC, printed |
| Reflector: |
Aluminium, specular
|
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 4.000 K (ESL & SL) |
| Color rendering index: | 80 |
| Optic interface: | LIFE |
| Commissioning: | For Autotest, operating duration, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to + 40 °C
|
| Protection class: | I |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | I |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
| Battery supply (alt.): | 90 V – 276 V |
