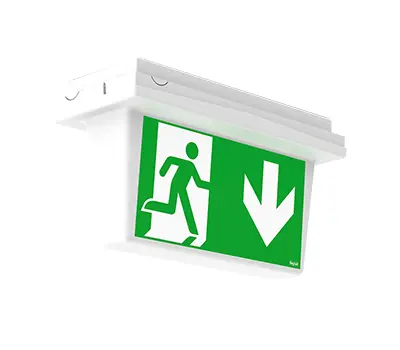

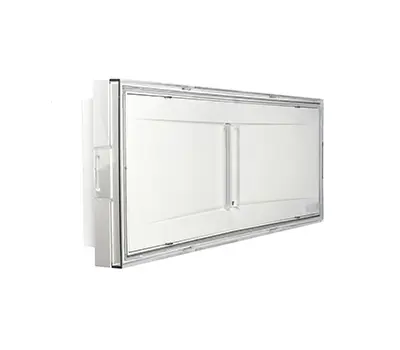

Infinita LED RTI
Variable escape sign and safety luminaire
Escape sign and safety luminaire with housing and cover made of polycarbonate (PC). High type of protection (IP65) and high impact resistance (IK08). Numerous cable entries. The RTI system offers a very homogeneous illumination of the escape sign foils as well as a glarefree light distribution when used as safety luminaire. With the special LED technology (for mounting heights of 2 m to over 12 m, luminaire distances for escape routes of up to 34 m) both escape routes and areas can be illuminated very efficiently.
Versions for surface wall and ceiling mounting and with additional accessories for recessed wall and ceiling mounting, pendulum, bracket and chain/wire
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Polycarbonate, white (RAL 9003)
|
| Cover: |
Polycarbonate, transparent
|
| Service life L80B20: | 50.000 h |
| Color temperature: | 4.000 K |
| Color rendering index: | 80 |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | II |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: |
III with connection only to low voltage,
II with additional connection to voltages above low voltage
|
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | II |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz for order code 31170 |
| Battery supply (alt.): | 90 V – 276 V for order code 31170 |
