Alu-K
Variable escape sign and safety luminaire
Housing made of flat aluminium profiles with angular contours. Available as escape sign luminaire or safety luminaire. High-power LED with light guidance through special lenses for asymmetrical light distribution (illumination of escape routes with 1 lx) or for symmetrical light distribution (illumination of areas with 0.5 lx) for safety luminaire. 1 or 2-sided escape route indication through exchangeable panes with additional light outlet downwards for surface wall mounting for escape sign luminaire.

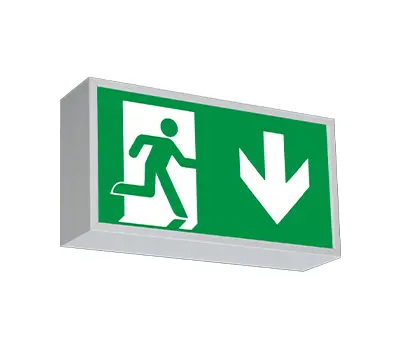

Escape sign luminaire:

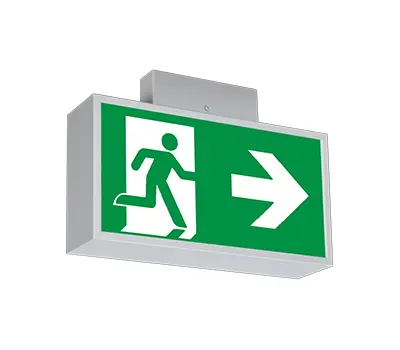

Versions for surface wall mounting and with additional accessories for pendulum and bracket
Safety luminaire:
Versions for surface wall and ceiling mounting
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Aluminium, anodized, grey
|
| Pane: |
PMMA, printed (escape sign luminaire)
PMMA, transparent (safety luminaire)
|
| Reflector: | Aluminium, specular |
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 4.000 K (ESL & SL) |
| Color rendering index: |
80 (ESL)
70 (SL)
|
| Optic interface: | LIFE |
| Commissioning: | For Autotest, operating duration, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | I |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | I |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
| Battery supply (alt.): | 90 V – 276 V |
