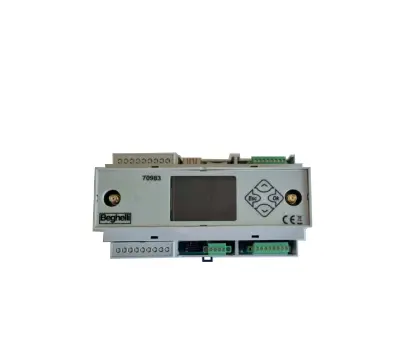

Logica Z NEA
Automatic test device for mains replacement supply
Automatic testing device according to DIN EN 62034 for monitoring and control of exit sign luminaires, safety luminaires, supply modules and supply devices (subscribers) with Logica bus interface (DALI) and self-contained supply or EPS supply (emergency power supply). Indirect communication between monitoring unit Logica SUPERVISION and subscribers over a maximum of 31 monitoring units of the type Logica S (for self-contained supply) or a maximum of 31 monitoring units of the type NEA-LOG (for EPS supply) via RS-485 bus. Automatic addressing of all subscribers.
| Technical Data: | |
|---|---|
| Housing: | Polycarbonate, grey (RAL 7035) |
| Dimensions (H x W x D): | 90 x 160 x 75 mm |
| Division units: | 9 DU |
| Type of protection: | IP20 |
| Protection class: | II |
| Mounting: | Distributor installation (DIN-rail) |
| Mains supply: | 230 V / 50 Hz |
| Ambient temperature: | 0 °C to +40 °C |
