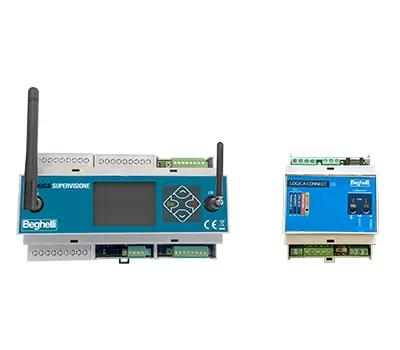

Logica S Connect & Logica Z
Automatic test devices for self-contained supply

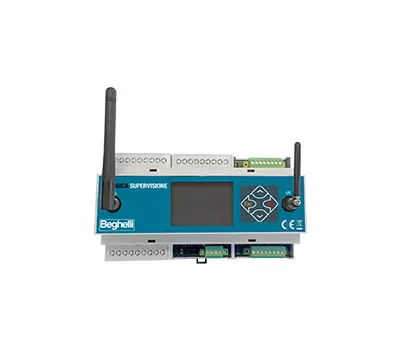

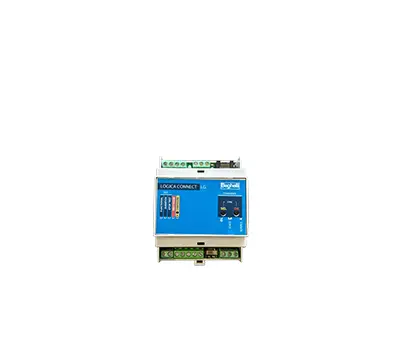

Automatic test devices, in combination according to DIN EN 62034, for monitoring and control of luminaires, supply modules and supply devices with self-contained supply and integrated Logica interface. Communication between test device Logica S Connect and max. 128 luminaires, supply modules and supply devices with self-contained supply and integrated Logica interface via cable bus according to the DALI standard. Communication between test device Logica Z and max. 31 test devices Logica S Connect via cable bus (RS485). Automatic addressing of the luminaires, supply modules and supply devices.
| TECHNICAL DATA - LOGICA S CONNECT & LOGICA Z FOR DISTRIBUTOR INSTALLATION | |
|---|---|
| Housing: |
Polycarbonate, grey (RAL 7035)
|
| Dimensions (H x W x D): |
90 x 71 x 60 mm (Logica S Connect) / 90 x 160 x 75 mm (Logica Z)
|
| Division units: | 4 DU (Logica S Connect) / 9 DU (Logica Z) |
| Type of protection: | IP20 |
| Protection class: | II |
| Mounting: | Distributor installation (DIN rail) |
| Mains supply: | 230 V +/- 10 % / 50-60 Hz |
| Ambient temperature: | 0 °C to +40 °C |

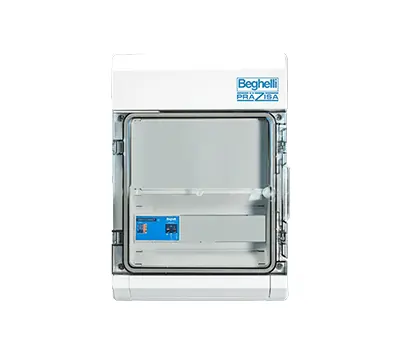

| TECHNICAL DATA - LOGICA S CONNECT FOR SURFACE WALL MOUNTING | |
|---|---|
| Housing: |
Polystyrene, grey (RAL 7035)
|
| Dimensions (H x W x D): |
458 x 295 x 129 mm
|
| Type of protection: | IP65 |
| Protection class: | II |
| Mounting: | Surface wall mounting |
| Mains supply: | 230 V +/- 10 % / 50-60 Hz |
| Ambient temperature: | 0 °C to +40 °C |

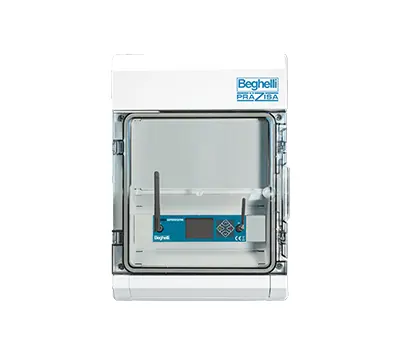

| TECHNICAL DATA - LOGICA Z FOR SURFACE WALL MOUNTING | |
|---|---|
| Housing: |
Polystyrene, grey (RAL 7035)
|
| Dimensions (H x W x D): |
458 x 295 x 129 mm
|
| Type of protection: | IP65 |
| Protection class: | II |
| Mounting: | Surface wall mounting |
| Mains supply: | 230 V +/- 10 % / 50-60 Hz |
| Ambient temperature: | 0 °C to +40 °C |

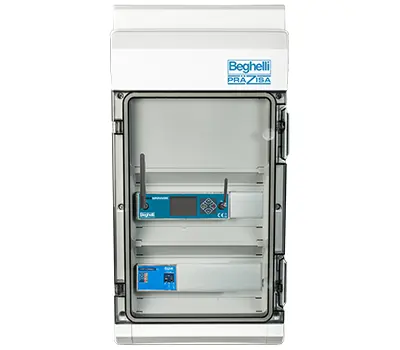

| TECHNICAL DATA - LOGICA S CONNECT & LOGICA Z FOR SURFACE WALL MOUNTING | |
|---|---|
| Housing: |
Polystyrene, grey (RAL 7035)
|
| Dimensions (H x W x D): |
583 x 295 x 129 mm
|
| Type of protection: | IP65 |
| Protection class: | II |
| Mounting: | Surface wall mounting |
| Mains supply: | 230 V +/- 10 % / 50-60 Hz |
| Ambient temperature: | 0 °C to +40 °C |
