Logica FM
Automatic test device for self-contained supply
Automatic test device according to DIN EN 62034 for monitoring and control of luminaires, supply modules and supply devices with self-contained supply and integrated Logica FM interface. Communication between test device Logica FM and 320 luminaires max., supply modules and supply devices with self-contained supply and integrated Logica FM interface via radio bus according to the ZigBee® standard. All Logica FM interfaces with integrated repeater.Automatic addressing of the luminaires, supply modules and supply devices.

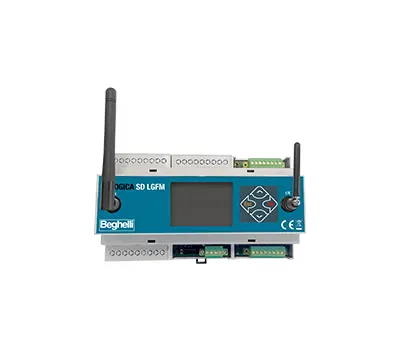

| TECHNICAL DATA - LOGICA FM FOR DISTRIBUTOR INSTALLATION | |
|---|---|
| Housing: |
Polycarbonate, grey (RAL 7035)
|
| Dimensions (H x W x D): |
90 x 160 x 75 mm
|
| Division units: | 9 DU |
| Type of protection: | IP20 |
| Protection class: | II |
| Mounting: | Distributor installation (DIN rail) |
| Mains supply: | 230 V +/- 10 % / 50-60 Hz |
| Ambient temperature: | 0 °C to +40 °C |

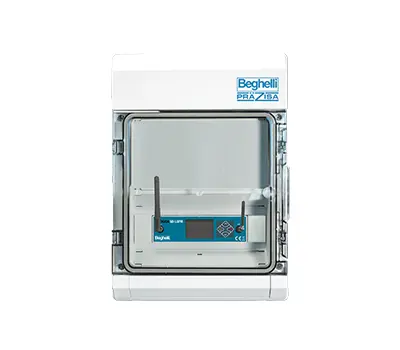

| TECHNICAL DATA - LOGICA FM FOR SURFACE WALL MOUNTING | |
|---|---|
| Housing: |
Polystyrene, grey (RAL 7035)
|
| Dimensions (H x W x D): |
458 x 295 x 129 mm
|
| Type of protection: | IP65 |
| Protection class: | II |
| Mounting: | Surface wall mounting |
| Mains supply: | 230 V +/- 10 % / 50-60 Hz |
| Ambient temperature: | 0 °C to +40 °C |
