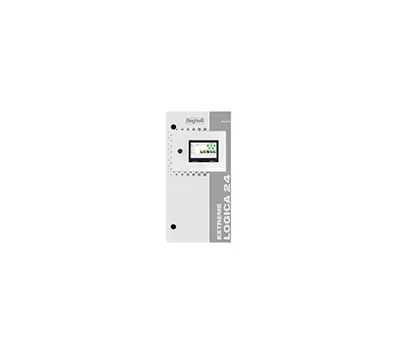

S24G-H-1/2, 20 Ah, EXTREME
Automatic test device for decentral supply Sicuro 24G
Main station.
| TECHNICAL DATA - GENERAL | |
|---|---|
| Version: |
Version with combined electronic and battery cabinet as wall cabinet
|
| Battery capacity: |
20 Ah
|
| Charging modules: | 1 |
|
Luminaire circuit modules
(internal):
|
1 or 2
|
| LSSA inputs (internal): | 4 |
| LSSA modules (internal): |
-
|
| LSSA modules (external): |
max. 96 (optional)
|
| Mounting: | Wall |
| Electronic cabinet: |
sheet steel, grey (RAL 7035)
|
| Battery cabinet: | sheet steel, grey (RAL 7035) |
| Dimensions (H x W x D): |
800 x 400 x 170 mm
|
| Type of protection: |
IP54
|
| Protection class: |
I
|
| Supply: |
1 / N / PE 230 V ~ 50 Hz / 60 Hz (mains)
24 V = (battery)
|
| Ambient temperature: |
-10 °C to +45 °C
|
| Cable entry: |
above
|
| Cable clamps: |
2,5 mm² (mains)
2,5 mm² (battery)
2x 2,5 mm² (luminaires)
2,5 mm² (control)
|
| Order code: |
1 luminaire circuit module: 17075
2 luminaire circuit modules: 17077
|
