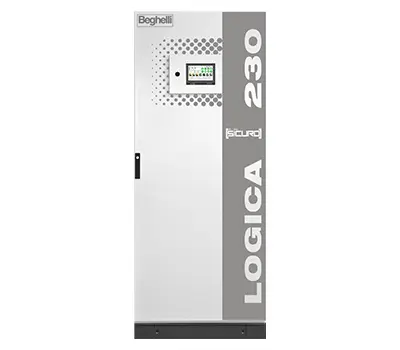

S230Z-U-S
Automatic test device for central supply Sicuro 230Z
Sub station.
| TECHNICAL DATA - GENERAL | |
|---|---|
| Version: |
Version with electronic cabinet as stand cabinet
|
| Battery capacity: |
-
|
| Charging modules: | - |
|
Luminaire circuit modules
(internal):
|
max. 32
|
|
Luminaire circuit modules
(external):
|
-
|
| 11KW switchover modules: | - |
| Sub station outputs: | - |
| LSSA inputs (internal): |
-
|
| LSSA modules (internal): |
max. 8 (optional)
|
| LSSA modules (external): |
max. 96 (optional)
|
| Mounting: | Stand |
| Electronic cabinet: |
Sheet steel, grey, RAL 7035
|
| Battery cabinet: | - |
| Dimensions (H x W x D): |
2.000 x 800 x 600 mm
|
| Type of protection: |
IP54 (electronic)
- (battery)
|
| Protection class: |
I
|
| Supply: |
1 / N / PE 230 V ~ 50 Hz / 60 Hz (mains)
216 V = (battery)
|
| Ambient temperature: |
-5 °C to +35 °C (electronic)
- (battery)
|
| Cable entry: |
below / above
|
| Cable clamps: |
min. 4 mm² (mains)
min. 4 mm² (battery)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
|
| Order code: |
-
|
