S230Z-H-W

Automatic test device for central supply Sicuro 230Z

Main station.
















TECHNICAL DATA - GENERAL
Version:

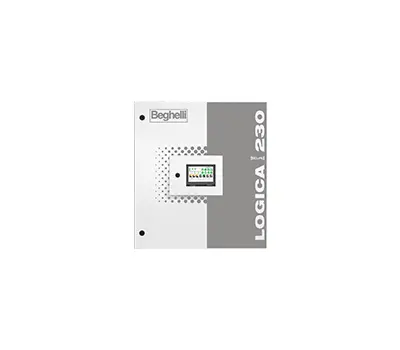

Version with separate electronic cabinet as wall cabinet and battery cabinet as stand cabinet
Battery capacity:
7,2 to 150 Ah
Charging modules: max. 2 resp. 4
Luminaire circuit modules
(internal):

max. 13 resp. 10 resp. 8
Luminaire circuit modules
(external):

max. 64 (eAK 2 EÜ/SÜ) resp. 32 (eAK 4 EÜ/SÜ)
11KW switchover modules: 2
Sub station outputs: max. 4
LSSA inputs (internal):
-
LSSA modules (internal):
max. 4 (optional)
LSSA modules (external):
max. 96 (optional)
Mounting:
Wall
Electronic cabinet:
Sheet steel, grey, RAL 7035

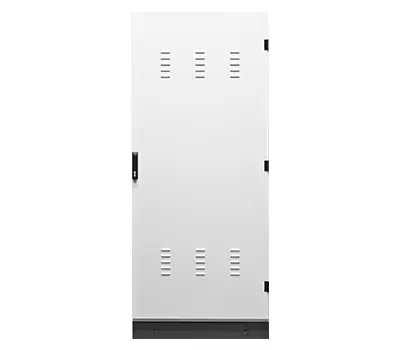

Battery cabinet: Sheet steel, grey, RAL 7035
Dimensions (H x W x D):
890 x 800 x 400 mm
Type of protection:
IP54 (electronic)
IP21 (battery)
Protection class:
I
Supply:
3 / N / PE 230 V ~ 50 Hz / 60 Hz (mains)
216 V = (battery)
Ambient temperature:
-5 °C to +35 °C (electronic)
+20 °C (battery)
Cable entry:
above
Cable clamps:
min. 4 mm² (mains)
min. 4 mm² (battery)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
Order code:
-

Automatic test device for central supply Sicuro 230Z
