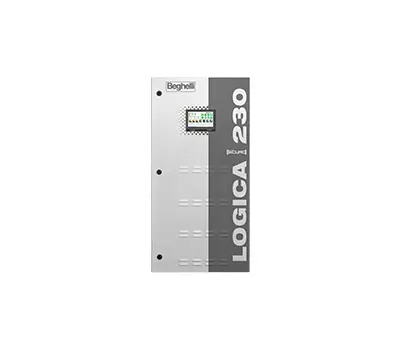

S230Z-H-SK MINI

AutomAutomatic test device for central supply Sicuro 230Zatische Prüfeinrichtung für zentrale Versorgung Sicuro 230Z

Main station.
















TECHNICAL DATA - GENERAL
Version:
Version with combined electronic and battery cabinet as stand cabinet
Battery capacity:
7,2 to 28 Ah
Charging modules: max. 2
Luminaire circuit modules
(internal):

max. 5
Luminaire circuit modules
(external):

max. 64 (eAK 2 EÜ/SÜ) resp. 32 (eAK 4 EÜ/SÜ)
11KW switchover modules: 1
Sub station outputs:
-
LSSA inputs (internal):
-
LSSA modules (internal):
max. 2 (optional)
LSSA modules (external):
max. 96 (optional)
Mounting:
Stand
Electronic cabinet:
Sheet steel, grey, RAL 7035
Battery cabinet: Sheet steel, grey, RAL 7035
Dimensions (H x W x D):
1.520 x 650 x 400 mm
Type of protection:
IP20 (electronic)
IP20 (battery)
Protection class:
I
Supply:
3 / N / PE 230 V ~ 50 Hz / 60 Hz (mains)
216 V = (battery)
Ambient temperature:
-5 °C to +35 °C (electronic)
+20 °C (battery)
Cable entry:
above
Cable clamps:
min. 4 mm² (mains)
min. 4 mm² (battery)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
Order code:
-

AutomAutomatic test device for central supply Sicuro 230Zatische Prüfeinrichtung für zentrale Versorgung Sicuro 230Z
