S230Z-H-S MAXI

Automatic test device for central supply Sicuro 230Z

Main station.
















TECHNICAL DATA - GENERAL
Version:
Version with separate electronic and battery cabinet as stand cabinet
Battery capacity:
7,2 to 400 Ah
Charging modules: max. 18
Luminaire circuit modules
(internal):

max. 24
Luminaire circuit modules
(external):

max. 64 (eAK 2 EÜ/SÜ) resp. 32 (eAK 4 EÜ/SÜ)
11KW switchover modules: 4
Sub station outputs:
max. 32
LSSA inputs (internal):
-
LSSA modules (internal):
max. 8 (optional)
LSSA modules (external):
max. 96 (optional)
Mounting:
Stand
Electronic cabinet:
Sheet steel, grey, RAL 7035 -

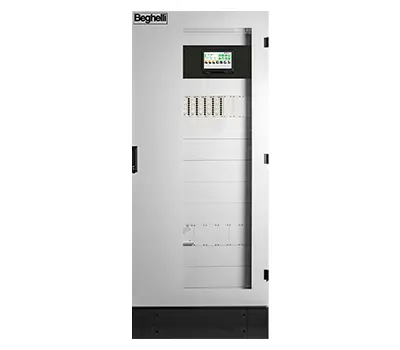

Electronic cabinet with swivel frame and large viewing window.
All luminaire circuits prewired to series terminals (push-in technology).

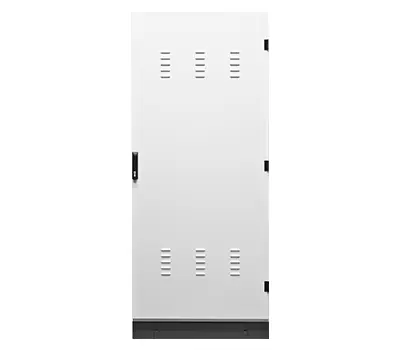

Battery cabinet: Sheet steel, grey, RAL 7035
Dimensions (H x W x D):
2.000 x 800 x 600 mm
Type of protection:
IP54 (electronic)
IP21 (battery)
Protection class:
I
Supply:
3 / N / PE 230 V ~ 50 Hz / 60 Hz (mains)
216 V = (battery)
Ambient temperature:
-5 °C to +35 °C (electronic)
+20 °C (battery)
Cable entry:
below / above
Cable clamps:
min. 4 mm² (mains)
min. 4 mm² (battery)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
Order code:
-

Automatic test device for central supply Sicuro 230Z
