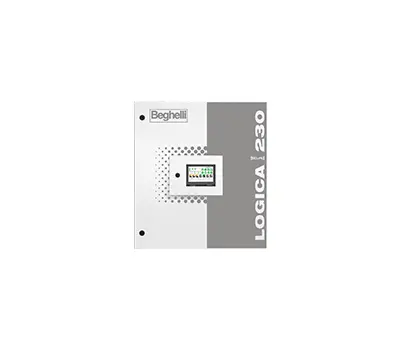

S230N-U-W
Automatic test device for central supply Sicuro 230N
Sub station.
| TECHNICAL DATA - GENERAL | |
|---|---|
| Version: |
Version with electronic cabinet as wall cabinet
|
|
Luminaire circuit modules
(internal):
|
max. 16
|
|
Luminaire circuit modules
(external):
|
-
|
| Sub station outputs: | - |
| LSSA inputs (internal): | - |
| LSSA modules (internal): | max. 4 (optional) |
| LSSA modules (external): |
max. 96 (optional)
|
| Mounting: | Wall |
| Electronic cabinet: |
Sheet steel, grey (RAL 7035)
|
| Dimensions (H x W x D): |
890 x 800 x 400 mm
|
| Type of protection: |
IP54
|
| Protection class: |
I
|
| Supply: |
1 / N / PE 230 V ~ 50 Hz / 60 Hz
|
| Ambient temperature: |
-5 °C to +35 °C
|
| Cable entry: |
above
|
| Cable clamps: |
min. 4 mm² (mains)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
|
| Order code: | - |
