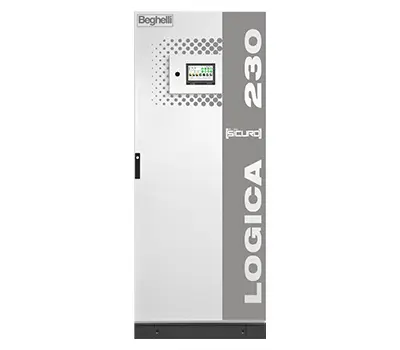

S230N-H-S
Automatic test device for central supply Sicuro 230N
Main station.
| TECHNICAL DATA - GENERAL | |
|---|---|
| Version: |
Version with electronic cabinet as stand cabinet
|
|
Luminaire circuit modules
(internal):
|
max. 32
|
|
Luminaire circuit modules
(external):
|
max. 64 (eAK 2 EÜ/SÜ) resp. max. 32 (eAK 4 EÜ/SÜ)
|
| Sub station outputs: | max. 20 |
| LSSA inputs (internal): | - |
| LSSA modules (internal): | max. 8 (optional) |
| LSSA modules (external): |
max. 96 (optional)
|
| Mounting: | Stand |
| Electronic cabinet: |
Sheet steel, grey (RAL 7035)
|
| Dimensions (H x W x D): |
2.000 x 800 x 600 mm
|
| Type of protection: |
IP54
|
| Protection class: |
I
|
| Supply: |
3 / N / PE 230 V ~ 50 Hz / 60 Hz
|
| Ambient temperature: |
-5 °C to +35 °C
|
| Cable entry: |
below / above
|
| Cable clamps: |
min. 4 mm² (mains)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
|
| Order code: | - |
