Inverter module
Supply modules

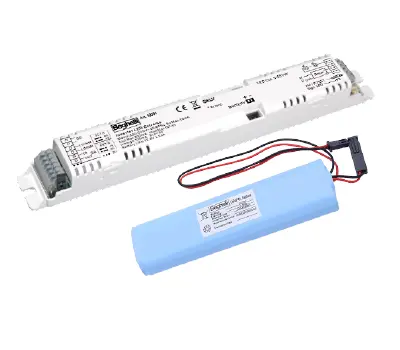

Emergency supply module for operation of a luminaire with LED lamp and electronic control gear in reduced power during failure of the mains supply. Connection of the luminaire with change of the inner wiring. Variant with separate electronic and battery module as well as with separate signal LED.

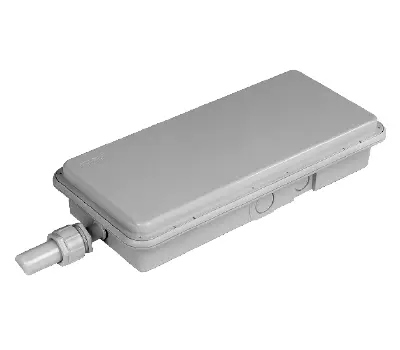

Version for luminaire installation (without housing) and with additional accessories for luminaire attachment (with housing, IP65)
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Polycarbonate, white (RAL 9003) (luminaire installation)
Polycarbonate grey (RAL 7035) (luminaire attachment) |
| Type of protection: |
IP20 (luminaire installation)
IP65 (luminaire attachment)
|
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
230 V / 50 Hz
|
| Switching: | Maintained (only with electronic control gear) and non-maintained |
| Protection class: |
II
|
| Ambient temperature: |
Electronic: -20 °C to +60 °C
Battery: 0 to +40 °C
|
| TECHNICAL DATA - OUTPUT | |
|---|---|
| Driver power (inverter): |
10 W for 1 h operating duration
3.3 W for 3 h operating duration
1.25 W for 8 h operating duration
(adjustable over DIP switch on inverter)
|
| Driver current (inverter): |
max. 0.5 A
|
| Treiberspannung (Inverter): |
5 V bis 55 V
|
Specifications
