Lumax 65
Safety luminaire

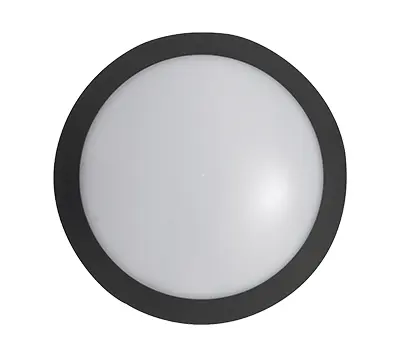

Combined general and safety luminaire with high type of protection. Round luminaire with housing as surrounding frame made of plastic with domed diffuser made of opal plastic. Homogeneous light emission. Special LED board with a large and a small LED circuit for different functions regarding the general and safety lighting. Special versions with integrated motion detector available.
Versions for surface wall and ceiling mounting
Also deliverable as luminaire for general lighting
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Polycarbonate, black (RAL 9005)
Polycarbonate, grey (RAL 7024)
|
| Diffusor: |
PMMA, opal
|
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 3.000 K or 4.000 K |
| Color rendering index: | 80 |
| Optic interface: | LIFE |
| Commissioning: | For Autotest, operating duration, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained or non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | I |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: |
III with connection only to low voltage,
I with additional connection to voltages above low voltage
|
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | I |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz for order codes 31083, 31087, 31091, 31095, 31201, 31205, 31209, 31213 |
| Battery supply (alt.): | 90 V – 276 V for order codes 31083, 31087, 31091, 31095, 31201, 31205, 31209, 31213 |
