LLL Extreme

Safety luminaire

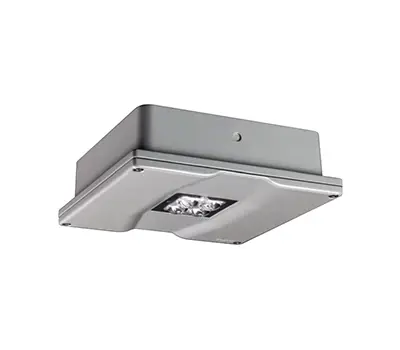

High type of protection and high impact resistance. Housing made of diecast aluminium in square shape. High-power LEDs with light guidance through special lenses for asymmetrical light distribution (illumination of escape routes with 1 lx) or for symmetrical light distribution (illumination of areas with 0.5 lx). Explosion-protected for zone 2 (II 3G Ex nA IIB T4 Gc) and zone 22 (II 3D Ex tc IIIC T80°C Dc) except of the accessory 15049. Extremely resistant against mechanical and chemical stress. All luminaires, except of the accessories 15043, 15044 and 15049, are suitable for the use in sport sites (certificate of accredited body available).

Versions for surface wall and ceiling mounting, excluding swivelable wall holder and with additional accessories for recessed wall and ceiling mounting and surface wall mounting with swivelable wall holder

TECHNICAL DATA - GENERAL
Housing:	Diecast aluminium, grey (RAL 7040)
Lens:	PMMA, transparent
Service life L₈₀B₂₀:	50.000 h
Color stability:	3 SDCM
Color temperature:	4.000 K
Color rendering index:	70
Optic interface:	LIFE
Commissioning:	For Autotest, operating duration 8h, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire.

TECHNICAL DATA - SELF-CONTAINED SUPPLY
Mains supply:	198 V – 254 V / 50 Hz
Switching:	Maintained and non-maintained
Ambient temperature:	0 °C to +40 °C
Protection class:	I

TECHNICAL DATA - DECENTRAL SUPPLY
Mains supply:	24 V +/- 20 % DC
Battery supply:	24 V +/- 20 % DC
Ambient temperature:	-20 °C to + 40 °C
Protection class:	III with connection only to low voltage, I with additional connection to voltages above low voltage

TECHNICAL DATA - CENTRAL SUPPLY
Mains supply:	198 V – 254 V / 50 Hz
Battery supply:	176 V – 276 V
Ambient temperature:	-20 °C to + 40 °C
Protection class:	I
