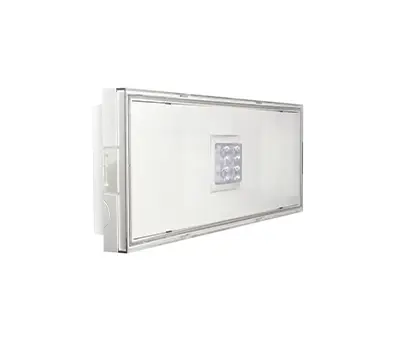

Infinita LED X5
Safety luminaire
Safety luminaire with housing and cover made of polycarbonate (PC). High type of protection (IP65) and high impact resistance (IK08). Numerous cable entries. The X5 system offers five optics in one luminaire – through five supplied lenses (for mounting heights of 2 m to over 12 m, luminaire distances for escape routes of up to 34 m) both escape routes and areas can be illuminated very efficiently.
Versions for surface wall and ceiling mounting and with additional accessories for recessed wall and ceiling mounting, pendulum, bracket and chain/wire
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Polycarbonate, white (RAL 9003)
|
| Cover: |
Polycarbonate, transparent
|
| Service life L80B20: | 50.000 h |
| Color temperature: | 4.000 K |
| Color rendering index: | 80 |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | II |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: |
III with connection only to low voltage,
II with additional connection to voltages above low voltage
|
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | II |
