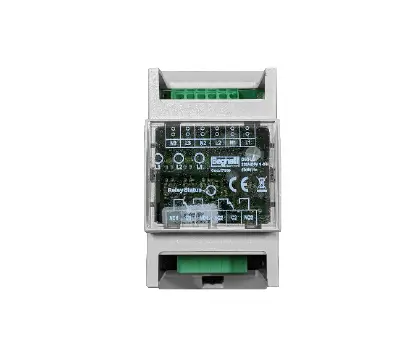

Mains monitoring module DS3 UV
Accessories
Module for monitoring the mains supply of the general lighting in sub distributors. Activation of the control output during mains faults and mains failures with U < 85% UNominal .
| TECHNICAL DATA - GENERAL | |
|---|---|
| Mains input: |
3 ~ N 400 V / 50/60 Hz or 1 ~ N 230 V / 50/60 Hz
|
| Control output: |
2 changeovers, potential-free
|
| Housing: | plastic |
| Dimensions (H x W x D): | 110 x 53 x 63 mm |
| Type of protection: | IP20 |
| Protection class: | II |
| Mounting: |
distributor installation (DIN rail)
|
