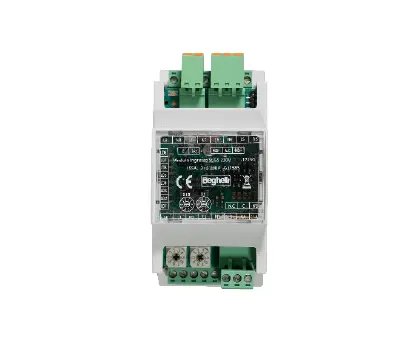

Light switch query module LSSA 3+5
Accessories
Module with 3 control inputs for monitoring the mains for general lighting or to query the light switches for general lighting and 5 control inputs to query the light switches for general lighting. Triggering of the control inputs with switch voltages (invertible). Function and logic of control inputs as well as assignment to luminaire circuits or luminaires free programmable.
| TECHNICAL DATA - GENERAL | |
|---|---|
|
Control inputs for
mains monitoring:
Control signal:
|
3 or 0
1 ~ N 230 V / 50 Hz, invertible (U < 85% UNominal)
|
|
Control inputs for
light switch query:
Control signal:
|
5 or 8
1 ~ N 230 V / 50 Hz, invertible
|
| Communication bus: | RS485 |
| Housing: | plastic |
| Dimensions (H x W x D): | 110 x 53 x 63 mm |
| Type of protection: | IP20 |
| Protection class: |
II
|
| Mounting: |
distributor installation (DIN rail) as well as in
various S230 stations |
