ei-tre

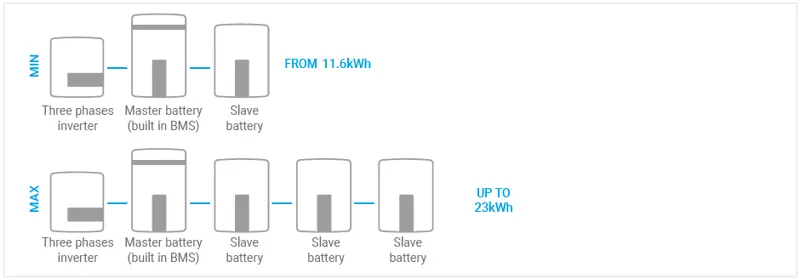

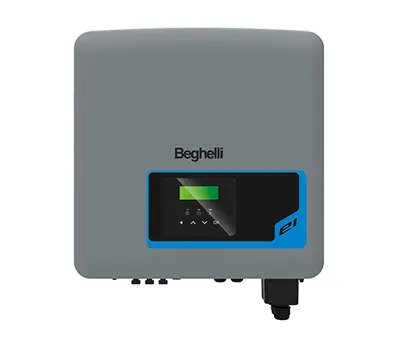

The ei-tre hybrid inverter is a three-phase model, which was specially developed for the service sector and small industrial applications and is capable of administrating up to 23 kW. An application in the living area is also possible. Energy generation and the consumption are monitored over an app and the Beghelli cloud. AC output for use of the energy reserve in case of power failure.
FEATURES
- Grid-connected three-phase hybrid inverter (ON-GRID) with storage battery management and EPS emergency function OFF-GRID (disconnected from mains)
- High efficiency during charging and discharging of the batteries, up to 97,5 %
- Administration of up to 150 % of the nominal power of the photovoltaic plant
- Low start-up voltage on the photovoltaic field side (higher utilization of the sun energy)
- MPPT optimization function during shading of the PV generator
- Operating temperature -35 °C to 60 °C (with derating over 45 °C)
- Integrated SPD (overvoltage protection)
- CT (current meter) included
- Ten inverters can be connected parallel
- Including WLAN module
- Monitoring over costless app and website
- Wall holders, cables and plugs included in scope of delivery
|
8 kW |
10 kW |
15 kW |
|
|---|---|---|---|
| Max. PV input power of the photovoltaic field [Wp] | 16.000 | 20.000 | 30.000 |
| Max. PV input power (input PV1 / input PV2) [Wp] | PV1: 8.500 / PV2: 5.000 | PV1: 10.500 / PV2: 6.000 | PV1: 11.000 / PV2: 7.000 |
| Max. PV input voltage [V] | 1.000 | ||
| Start-up voltage [V] | 200 | ||
|
Nominal input voltage [V] |
640 | ||
|
Voltage range of MPP tracker [V] |
180-950 | ||
|
Quantity of MPP tracker/strings per MPP tracker |
2(2/1) |
||
|
Maximum input currents (input PV1 / input PV2) [A] |
28/16 |
||
|
Maximum short-circuit current (input PV1 / input PV2) [A] |
35/20 |
||
|
8 kW |
10 kW |
15 kW |
|
|---|---|---|---|
|
Nominal power AC output [W] |
8.000 | 10.000 | 15.000 |
|
Max. apparent power AC output [VA] |
8.800 |
11.000 | 15.000 |
|
Max. current AC output [A] |
12.9 | 16.1 | 24.1 |
|
Max. apparent power AC input [VA] |
16.000 | 20.000 | 20.000 |
|
Max. current AC input [A] |
25.8 | 32.0 | 32.0 |
|
AC nominal voltage [V] |
415/240; 400/230; 380/220 |
||
|
Nominal mains frequency [Hz] |
50/60 |
||
|
Range of power factor adaption |
0.8 inductive to 0.8 capacitive |
||
|
THDi (nominal power) [%] |
<3 |
||
|
8 kW |
10 kW |
15 kW |
|
|---|---|---|---|
|
Battery type |
Lithium-Ferro-Phosphate battery LiFePO4 |
||
|
Battery voltage range [V] |
180 to 800 |
||
|
Maximum continuous charging/discharging current [A] |
30 |
||
|
8 kW |
10 kW |
15 kW |
|
|---|---|---|---|
|
Nominal output power [W] |
8.000 |
10.000 |
15.000 |
|
Peak apparent power [VA, s] |
12.000, 60 |
15.000, 60 |
16.500, 60 |
|
Maximum deliverable current [A] |
11.6 |
14.5 |
21.8 |
|
Nominal voltage [V] / frequency [Hz] |
400, 230 / 50, 60 |
||
|
ON-GRID --> OFF-GRID switchover time at power failure [ms] |
<10 |
||
|
Parallel operation |
yes |
||
|
8 kW |
10 kW |
15 kW |
|
|---|---|---|---|
|
Maximum efficiency [%] |
98.0 |
||
|
Euro efficiency [%] |
97.7 |
||
|
Efficiency during charging / discharging of the battery [%] 1 |
98.5 / 97.5 |
||
|
Protection type |
IP65 |
||
|
Operating temperature range [°C] |
-35 to +60 (derating mode at +45) |
||
|
Maximum operating altitude [m] |
<3000 |
||
|
Relative air humidity [%] |
0 to 100 |
||
|
Typical noise emission [dB] |
<35 | <35 | <45 |
|
Storage temperature [°C] |
-40 to +70 |
||
|
Measurements (WxHxD) [mm] |
503x503x199 |
||
|
Weight [kg] |
30 |
||
|
Cooling concept |
natural convection |
fan |
|
|
Communication interfaces |
CT (current meter) / COM RS485 / BMS port for battery connection (CAN, RS485) / CAN port (for connection of several inverters to each other) / connection for WLAN module or ethernet / USB for SW update / DRM connection (demand response mode) for control through the grid operator / NTC (optional) |
||
|
8 kW |
10 kW |
15 kW |
|
|---|---|---|---|
|
Standby consumption at night [W] |
<40W for hot standby <5W for cold standby |
||
|
8 kW |
10 kW |
15 kW |
|
|---|---|---|---|
|
Safety |
EN IEC 62109-1/2 |
||
|
EMC |
EN 61000-6-1/2/3/4; EN 61000-3-2/3/11/12 |
||
|
Certification |
VDE 4105, G99, G98, AS4777, EN 50549, CEI 0-21, IEC 61727 / PEA/MEA, NRS-097-2-1, RD1699, TOR |
||
- EPS: emergency power supply, an output, which is activated in case of a power failure, by supplying consumers connected with 230 V alternating current with energy and using battery current, if present
- BMS: battery management system, electronic battery controller, integrated in battery packs
- DRM: demand response mode, standard and interface for possible control of the inverter through the public grid operator
- 1: PV to battery - max. efficiency 98.5 %, battery to AC - max. efficiency 97.5 %
