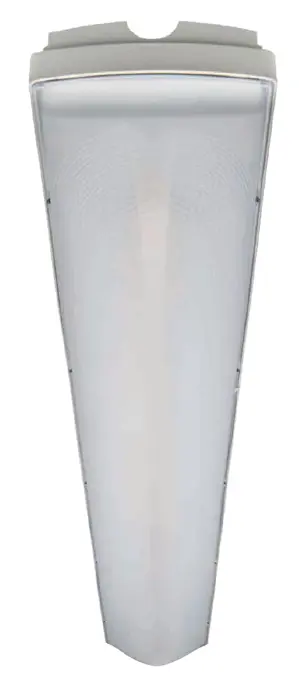

BS Uno Modula
Industrial LED luminaire
Professional luminaire with high luminous flux and anti-glare system. It is able to operate in emergency mode when equipped with a Plug&Light LED inverter or a Logica LED inverter (addressable). It is a luminaire with the highest degree of flexibility thanks to various additional modules for the Smart Driver system. The Autodimmer sensor is supplied as standard in the basic equipment of the luminaire.
The luminaire is equipped with a self-extinguishing polycarbonate cover, which is also stable to UV radiation and guarantees the best light distribution throughout the room. This is a very resistant and durable luminaire with expanded polyurethane gaskets with hidden closing clips made of polyester-based technopolymer.
Luminaire equipped with the Modula system - a quick-release bracket with a snap-on electrical contact, a removable terminal block and various pre-prepared holes for cable routing, including through-wiring. The SD version, in addition to the electrical PIN connectors with terminal block, also includes a slot for inserting various emergency lighting modules or other communication accessories, both for radio and Bluetooth. The central supporting main bracket is equipped with mounting holes and two elastic stainless steel holders for snapping directly onto the main bracket or onto the ceiling, along the ceiling luminaire profile or in preset positions with a pitch of 900 mm.
Also available in an adjustable version with a four-step driver, which allows you to change the luminous flux within four preset values. Thanks to this driver, the luminaire provides a versatile solution for various applications.
The luminaire has an IP65 protection level. Degree of protection against mechanical damage: IK07.

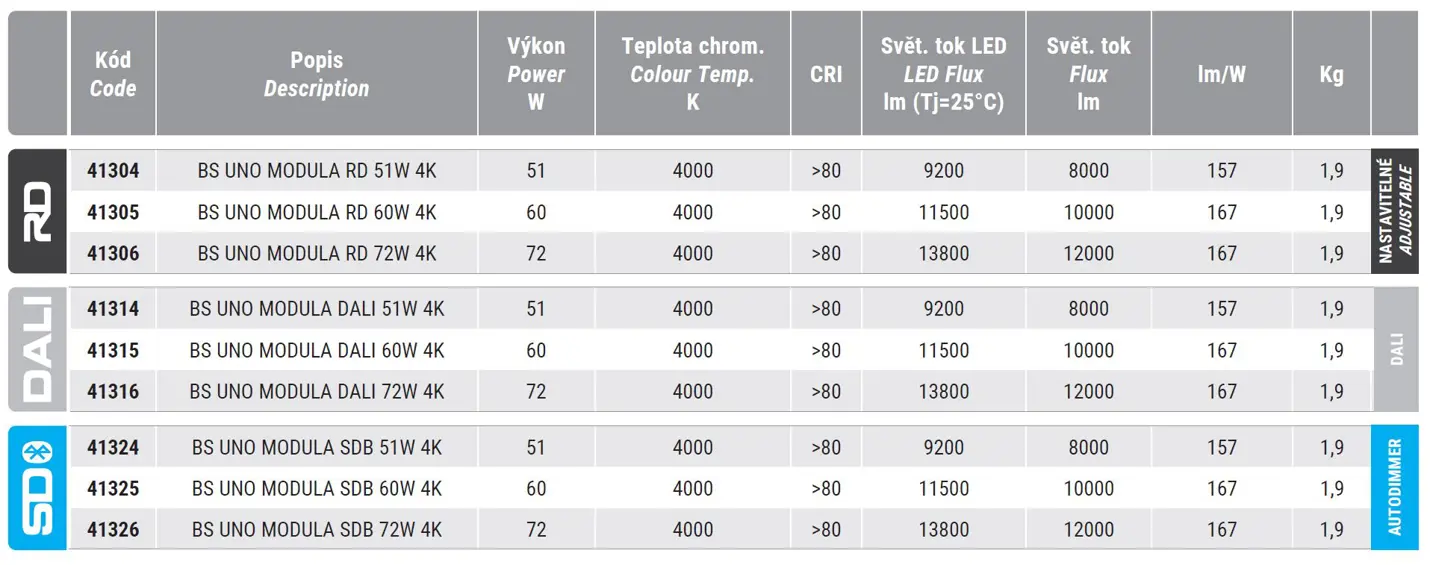

Specifications
