Building automation radio transmitter interface
Building automation lighting

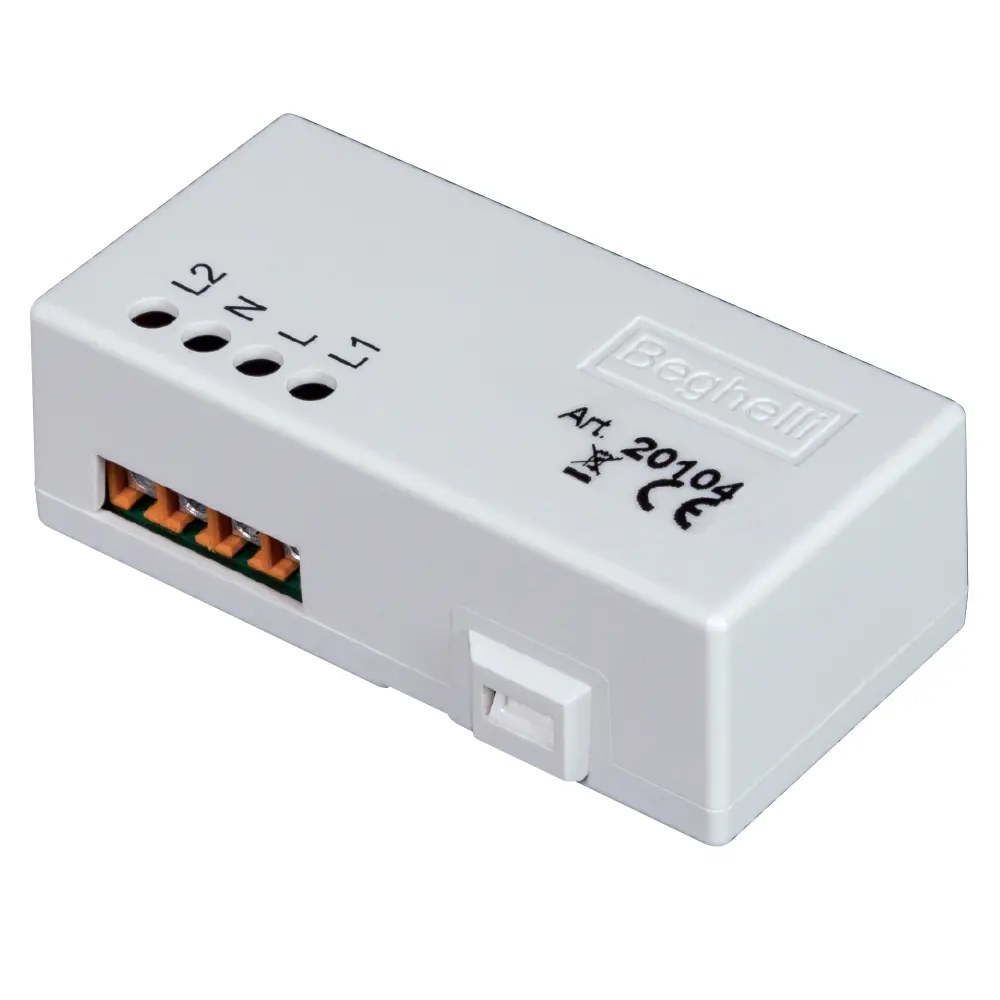

The transmitter is a radio interface device powered at 230V AC and fitted with a 230V input that can send radio commands to the lighting devices or to receivers equipped with relay actuators.
The device measures about 30x64x20 mm, and has 4 screw terminals - 2 for the power supply (N and L) and 2 for input (L1 and L2) - that read the voltage in common with the neutral terminal (N).
The module contains 2 transmitters that can be used separately, or via an up/down button to switch on, switch off or dim the device to which it is connected (via radio).
Thanks to the new "SD Manager"software, you can implement numerous programmings to ensure all the domotic functions relating to lighting.
The interface has a built-in antenna, and can be inserted in any type of non-shielded box; if it is used in a 503 box, it takes up the space of a single module.
Working temp. -20 °C ÷ +50 °C
The following functions can be associated with the transmitter:
- Timed command transmission (button or movement sensor);
- Status transmission (on/off switch)
The commands sent by the transmitter are associated with a single lighting device or 20104 groups of devices.
