Building automation radio receiver interface

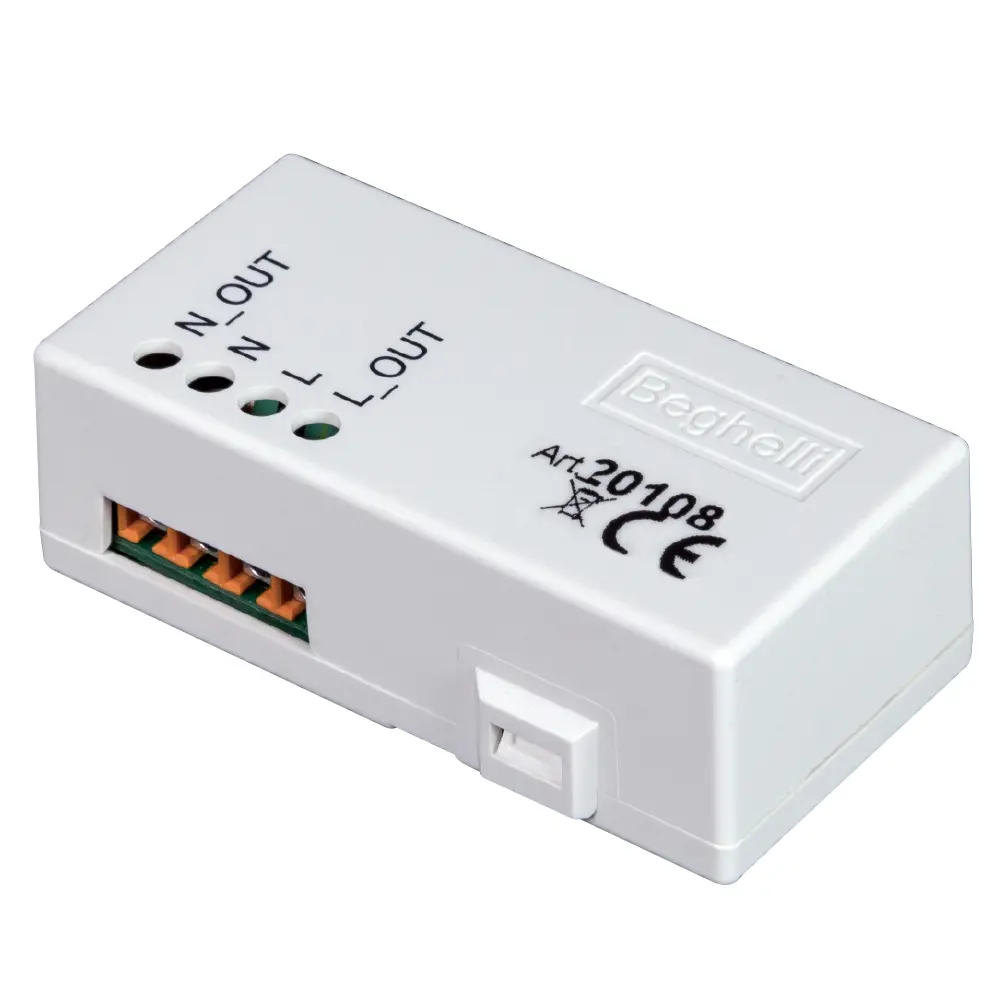

The Receiver is a radio interface device, supplied at 230 VAC, which integrates a relay able to control light fixtures and other electric loads. With approximate dimensions 30 × 64 × 20 mm, has 4 screw terminals, two for the power supply (N and P) and two for the 230 V output (N and Pout).
The antenna is built-in and can be fitted in any type of unshielded container; if used in a 503 box it occupies the internal space of a single socket.
The relay is able to switch a maximum load of 260 W.
The receiver also has a built-in power meter and a counter for the electric energy distributed at the output.
The device is associated with one or more radio transmitters and activates the corresponding commands.

Working temp. -20 °C ÷ +50 °C
