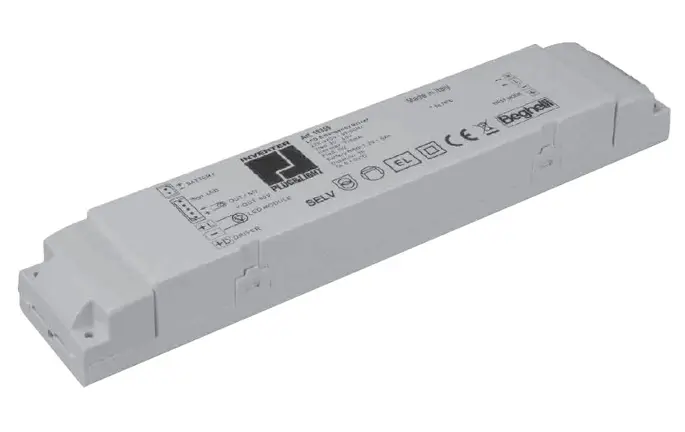

Inverter LED PlugLight
Fast connection inverter
Inverter based on Plug&Light patented technology, equipped with a rapid connector that is compatible with SD (Smart Driver) that comes as standard in all the devices in the Stella Polare LED range. The inverter cabinet incorporates the battery pack and features a cable cover for use removed from the device, such as in the case of Led Panel or Down light LED, where it is housed in the suspended ceiling.

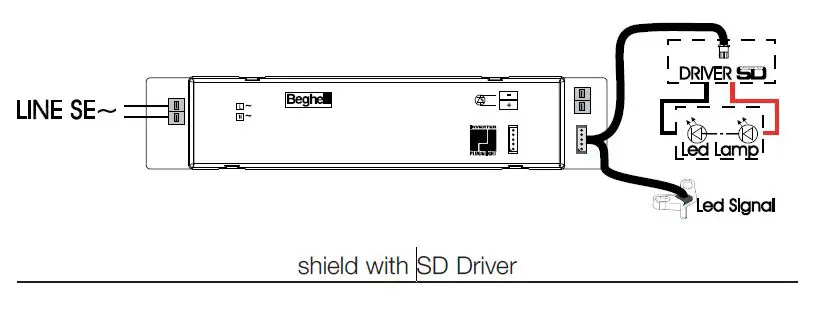

The system includes the Battery Control System (BCS) with multicolor LED signaling system to show battery status, and is compatible with all LED devices equipped with SELV certified drivers to which it can be quickly connected using the fast universal terminal board. The Plug&Light system guarantees the highest level of performance (for example when installed on BS 100 LED it provides emergency power of 452 Im), constant output power and complete maintenance of the conformity features of the Smart Driver device that it is connected to.
Inverter is able to work with every kind of LED sourge and driver in the 2 DC ranges 20-60V and 60-180V.
The system includes the Battery Control System (BCS) with multicolor LED signaling system to show battery status, and is compatible with all LED devices equipped with SELV certified drivers to which it can be quickly connected using the fast universal terminal board. The Plug&Light system guarantees the highest level of performance (for example when installed on BS 100 LED it provides emergency power of 452 Im), constant output power and complete maintenance of the conformity features of the Smart Driver device that it is connected to.
Inverter is able to work with every kind of LED sourge and driver in the 2 DC ranges 20-60V and 60-180V.

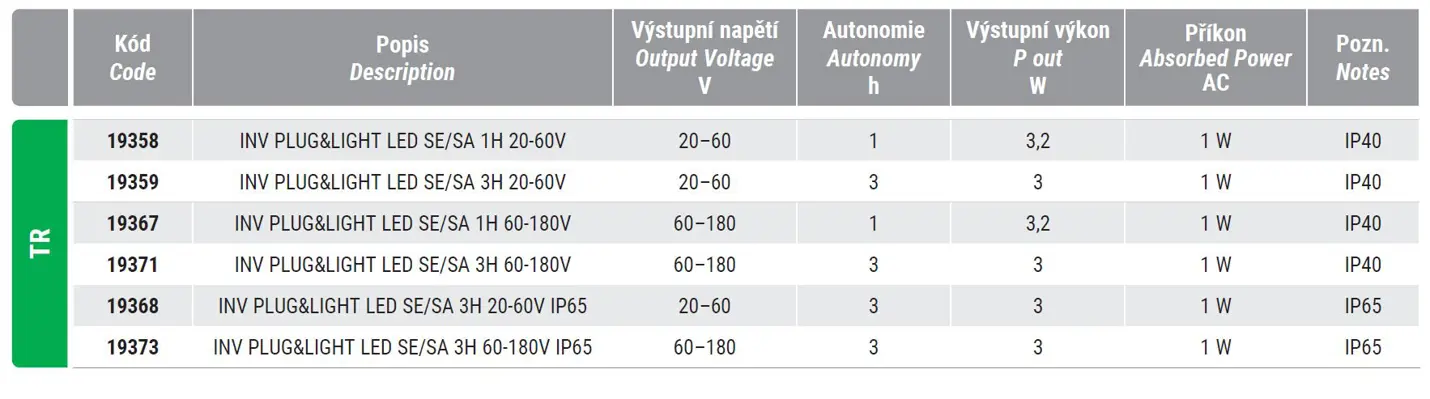

Specifications
