Inverter LED
Inverter

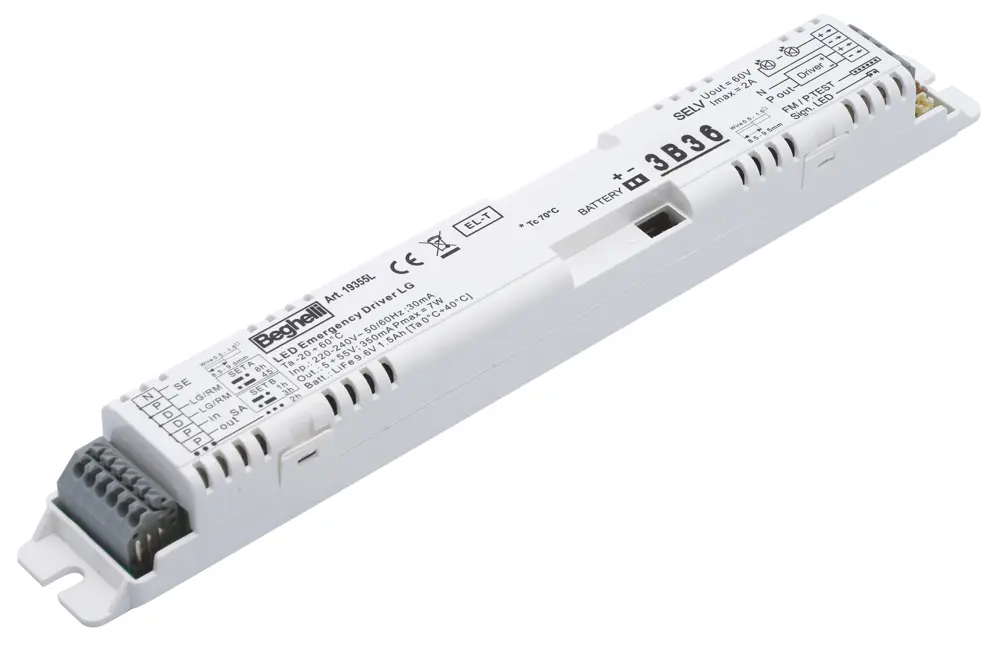

Electronic control gear for emergency lighting to light the LED modules. Autonomy independent of the lamp and selectable, 1 hour, 2 hours and 3 hours.
The control of the output current with PWM modulation at a constant peak current allows the best control of the LED module, avoiding effects of distortion of the light flux and of the LED colour temperature. Maximum versatility for a LED conversion kit. Self-adapting output voltage with automatic load recognition. Output power independent of the connected LED module, and from today, thanks to the new Autoripara Battery, the safety and power are doubled.
The LED conversion kit is able to recognize the presence of the second battery and to double the power output from 6W to 12W ***.
The recharging system guarantees 1h of autonomy after 12h of recharging in the 2h and 3h configurations. The disconnection by relay of the power supply arriving from the driver and of the LED circuit make the Beghelli LED conversion kit a universal product, compatible with all drivers.
If not reached by the BUS, the LG version automatically performs selfdiagnosis (AutoTest).
The control of the output current with PWM modulation at a constant peak current allows the best control of the LED module, avoiding effects of distortion of the light flux and of the LED colour temperature. Maximum versatility for a LED conversion kit. Self-adapting output voltage with automatic load recognition. Output power independent of the connected LED module, and from today, thanks to the new Autoripara Battery, the safety and power are doubled.
The LED conversion kit is able to recognize the presence of the second battery and to double the power output from 6W to 12W ***.
The recharging system guarantees 1h of autonomy after 12h of recharging in the 2h and 3h configurations. The disconnection by relay of the power supply arriving from the driver and of the LED circuit make the Beghelli LED conversion kit a universal product, compatible with all drivers.
If not reached by the BUS, the LG version automatically performs selfdiagnosis (AutoTest).

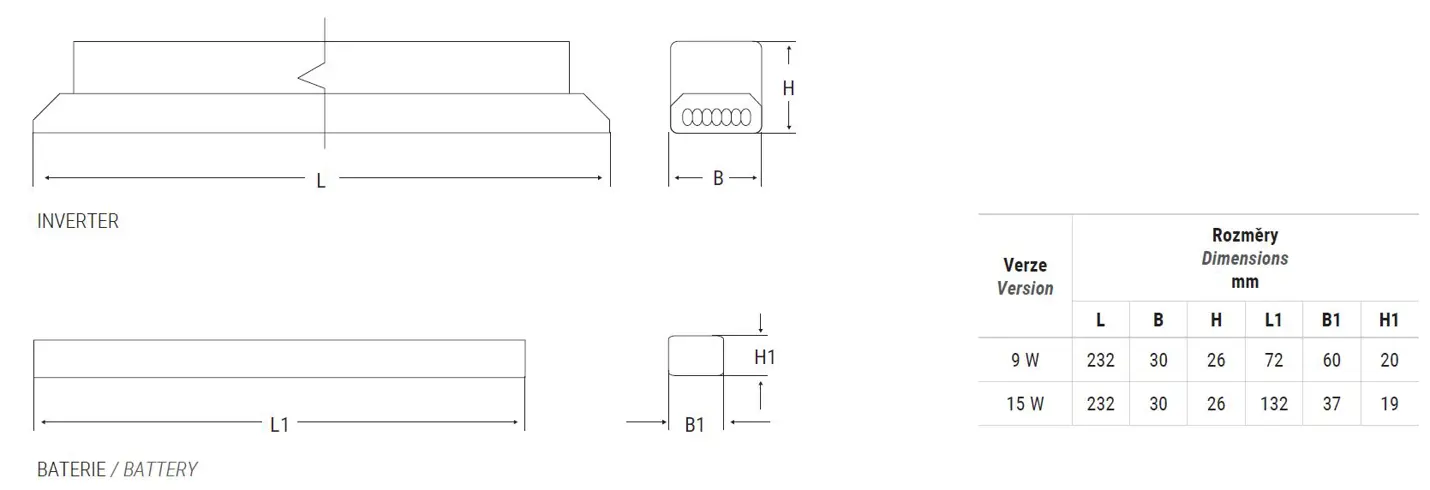

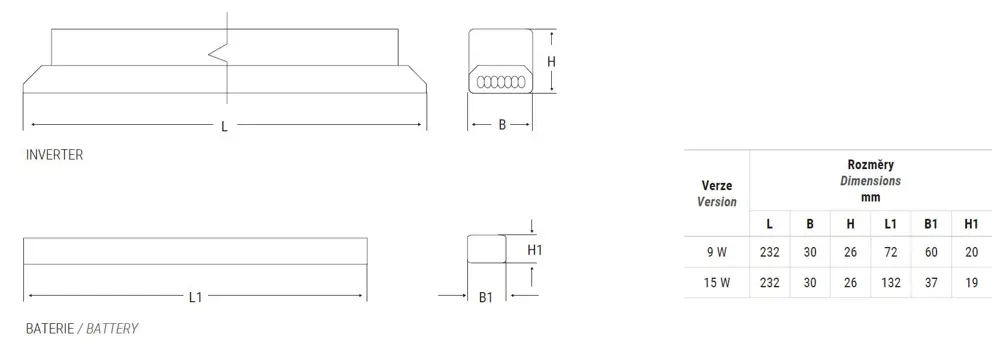

Specifications
